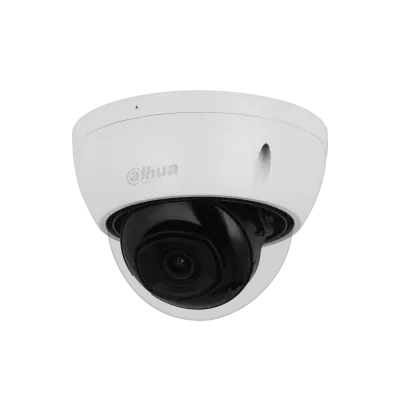

Dahua – IPC-HDBW2230E-S-S2 2MP Lite IR Fixed-focal Dome Network Camera

Dahua IPC-HDBW2230E-S-S2 – 2MP Lite IR Fixed-focal Dome Network Camera

The IPC-HDBW2230E-S-S2 is a cost-effective yet powerful 2MP dome camera from Dahua Lite Series, designed for small business and residential surveillance. Its compact mini-dome design blends easily into any ceiling while delivering 24/7 HD security.

Overview:
Equipped with 1/2.7" 2MP Progressive CMOS sensor, it delivers crisp 1080p Full HD video at 25/30fps. The fixed 2.8mm lens gives 106° wide coverage (3.6mm = 86°), perfect for shops, lobbies, corridors and offices. Smart IR provides clear night vision up to 30 meters without overexposure.

Advanced Features:
- Latest Encoding: H.265+ / H.265 / H.264+ / H.264 reduces storage by 70% vs H.264, supports ROI and Smart Codec
- Low Light Performance: Minimum illumination 0.005 Lux @F1.6, Starlight technology for color image in near darkness
- Intelligent Functions: Smart Motion Detection (SMD) – human/vehicle classification, Tripwire & Intrusion (with NVR), Motion Detection, Privacy Masking
- Durability: IP67 waterproof for outdoor use (-40°C to +60°C), IK10 vandal resistance, 3-axis adjustment (0-355° pan, 0-65° tilt)
- Audio: Built-in microphone (-S variant) for audio recording
- Installation: PoE (802.3af) & DC 12V dual power, compact 109mm x 83mm size, easy ceiling mount

Specifications:
- Model: DH-IPC-HDBW2230E-S-S2
- SKU: IPC-HDBW2230E-S-S2
- Resolution: 2MP 1920x1080
- Lens: 2.8mm / 3.6mm Fixed
- IR Range: 30m Smart IR
- Compression: H.265+
- Protection: IP67, IK10
- Power: PoE / 12V DC <5.1W
- Storage: Micro SD? No, NVR based
- Compatibility: ONVIF, Dahua NVR, DMSS App

Application: Ideal for Retail, Offices, Homes, Schools, Warehouses – both indoor & outdoor.

Package Includes: Dome Camera, Mounting Screws, Waterproof connector, Quick Guide
