Hikvision 16 Channel Non- PoE NVR DS-7716NXI-K4

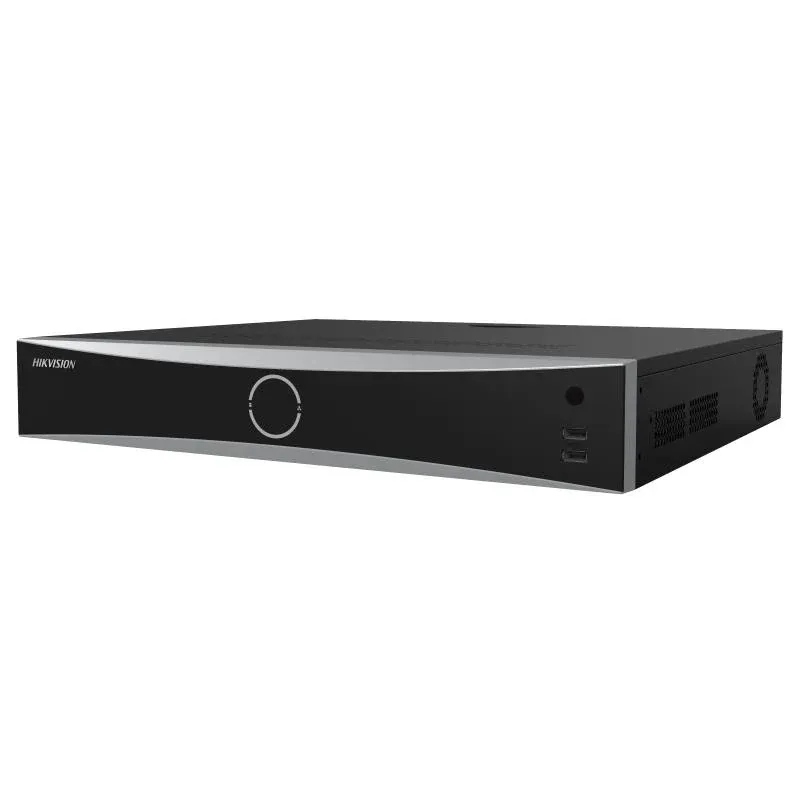

Hikvision DS-7716NXI-K4 – 16 Channel Non-PoE AcuSense 4K Network Video Recorder

The Hikvision DS-7716NXI-K4 is a powerful 16-channel 1.5U K-Series AcuSense NVR designed for medium to large-scale IP surveillance systems. As the Non-PoE variant, it offers flexible deployment with external PoE switches, making it ideal for installations where PoE infrastructure already exists.

Performance & Recording:
Supports 16-channel IP video input up to 12MP resolution with 160 Mbps incoming and 160 Mbps outgoing bandwidth. Features advanced H.265+, H.265, H.264+, H.264 video compression to drastically reduce storage and bandwidth by up to 75%. Decoding capability: 2-ch @ 12MP, 4-ch @ 8MP, 8-ch @ 4MP, 16-ch @ 1080p.

AcuSense Intelligence:
Powered by Hikvision's AcuSense deep-learning technology, it provides accurate human and vehicle target classification for Motion Detection 2.0 and Perimeter Protection, significantly reducing false alarms caused by animals, leaves, or light changes. Supports face detection, line crossing, intrusion detection.

Video & Storage:
Video outputs: HDMI1 up to 4K (3840x2160/30Hz), HDMI2 up to 1080p, and VGA independent output. Audio: 1-ch input/output. Storage: 4x SATA interfaces, each supports up to 10TB HDD, total up to 40TB. No eSATA. Supports NVR / IP camera dual-stream recording.

Connectivity & Features:
Non-PoE model - connect cameras via external switch/router. 1x RJ45 10/100/1000M self-adaptive Ethernet port, 2x USB 2.0 + 1x USB 3.0. Supports 16-ch synchronous playback. Smart search, smart playback. Compatible with Hik-Connect for remote viewing on mobile/PC.

Applications:
Perfect for retail stores, warehouses, offices, villas, and commercial buildings where a centralized, high-capacity, intelligent recording solution without built-in PoE is required.

Specifications at a Glance:
Model: DS-7716NXI-K4 | Channels: 16 | PoE: No | SATA: 4 | Resolution: 12MP / 4K | Compression: H.265+ | AcuSense: Yes | Rack: 1.5U
